Root-Cause Analysis of Pre-Cast Structure at Quincy Station Chicago, IL
Key Information
Project name: Root-Cause Analysis of Quincy Station Pre-Cast Structure Collapse
Client: GC, concrete subcontractor, and shoring subcontractor
Location: Westmont, Illinois
Services Provided: Root-Cause Analysis
Talk to our experts
The Challenge
Investigating a Precast Structure Collapse

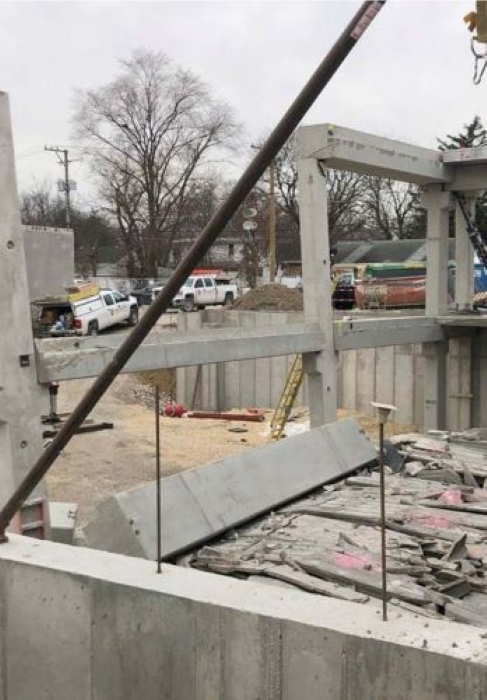

During the construction of a two-story precast concrete structure in Westmont, Illinois, a partial collapse spanning three structural bays occurred. The incident raised immediate concerns for all stakeholders, including the general contractor and subcontractors responsible for concrete and shoring systems.
The complexity of the structure and the lack of standardized erection protocols for low-height precast systems created conditions where construction errors could go undetected. The collapse highlighted the need for a thorough forensic investigation to determine the origin of the failure and ensure the safety of the remaining structure.
In addition to identifying the root cause, the project team needed to:
- Stabilize the surrounding structure to prevent further damage
- Assess the condition of undamaged and damaged components
- Restore structural integrity efficiently and safely
- Provide clarity and accountability for all parties involved
Without a clear understanding of what went wrong, the project faced delays, increased costs, and ongoing safety risks.
The Solution
Forensic Engineering and Structural Stabilization
SOCOTEC’s Chicago-based Specialty Engineering team led a comprehensive root-cause analysis, combining forensic engineering expertise with practical on-site solutions. The investigation determined that the collapse was caused by a lack of adequate shoring, particularly for inverted T-beams subjected to rotational loads during plank installation. This critical oversight led to instability during the erection process.
Beyond identifying the cause, SOCOTEC supported the recovery effort by working closely with the shoring contractor to:
- Shore and stabilize the surrounding structure
- Jack undamaged structural members back into position
- Evaluate the condition of precast elements impacted by the collapse
Services provided included:
- Root-cause analysis and forensic investigation
- Structural failure assessment
- On-site engineering support for stabilization
- Collaboration with contractors to implement corrective measures
SOCOTEC’s approach ensured not only a clear understanding of the failure but also practical, actionable steps to restore the structure safely.
SOCOTEC’s Chicago-based Specialty Engineering team led a comprehensive root-cause analysis, combining forensic engineering expertise with practical on-site solutions. The investigation determined that the collapse was caused by a lack of adequate shoring, particularly for inverted T-beams subjected to rotational loads during plank installation. This critical oversight led to instability during the erection process.
Beyond identifying the cause, SOCOTEC supported the recovery effort by working closely with the shoring contractor to:
- Shore and stabilize the surrounding structure
- Jack undamaged structural members back into position
- Evaluate the condition of precast elements impacted by the collapse
Services provided included:
- Root-cause analysis and forensic investigation
- Structural failure assessment
- On-site engineering support for stabilization
- Collaboration with contractors to implement corrective measures
SOCOTEC’s approach ensured not only a clear understanding of the failure but also practical, actionable steps to restore the structure safely.
The ReSULTS
Clarity, Stability, and Safer Construction Practices
SOCOTEC’s intervention provided the project team with a definitive understanding of the collapse and enabled safe stabilization of the structure. The findings also reinforced the importance of proper shoring and planning, helping stakeholders reduce the risk of similar failures in future projects.
